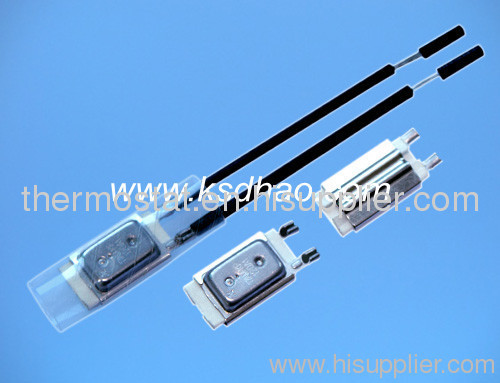

17AMH+PTC manual reset thermal protector, 17AMH+PTC manual reset thermostat

Price:	0.19~0.2 USD
Payment Terms:	T/T,L/C
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 17AMH+PTC

Production Capacity: 10000000pcs per month

Delivery Date: 7 days after received the p...

Means of Transport: Ocean

Packing: 1000pcs per bag

17AMH manual reset themal protector: 17AMH manual reset temperat...

17AMH thermal protector is applicable to all kinds of Motor, commutator for fluorescent lamp, tansformer, Laminator, lamps and lighting, transformers

17AMH Thermal protector / 17AMH Thermostat / 17AM temperature protector / instead of KLIXON 17AM thermal protector

1.17AMH thermostat's Principle and structure

17AMH is an excess-current thermal protector with compact design, Quick and accurate action, we can rivet different types of leads according to customers' requirements.

2.17AMH thermal protector's Specification

2.1.Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A

2.2.Contact life cycles: AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles

2.3.Operating temperature range: 50-180°C

2.4.Temperature tolerance: ±2°C±3°C±5°C

2.5.Reset temperature: 10~45 degrees in off temperature decline.

2.6.Working times: Over 10000 times

2.7.Code syste

17AMH XXX A / B 5 A,B,C,D………..Z

(17AMH): The number of product series

(XXX): Trip off temperature in °C Code

(A / B): A: Terminals in the same direction / B: Terminals in the opposite direction

(5): OFF Temperature Tolerance Code

(A, B, C, D………..Z): Different type of connecting wire

2.8.Trip off temperature in °C Code

Degrees °C	Code	Degrees °C	Code	Degrees °C	Code	Degrees °C	Code
55°C	018	90°C	025	125°C	032	160°C	039
60°C	019	95°C	026	130°C	033	165°C	040
65°C	020	100°C	027	135°C	034	170°C	041
70°C	021	105°C	028	140°C	035	175°C	042
75°C	022	110°C	029	145°C	036	180°C	043
80°C	023	115°C	030	150°C	037
85°C	024	120°C	031	155°C	038

2.9.Product Drawing

3.17AMH temperature protector’s Application

17AMH thermal protector is applicable to all kinds of Motor, commutator for fluorescent lamp, tansformer, Laminator, lamps and lighting, transformers, cover sealing machine & various of household appliances

4.17AMH thermostat’s A/°C and A/T Graph:

The product UL,CQC,VDE and RoHS certification approval.
